507 – Oil Level Controller
507 Series Oil Level Controllers for Mechanical Lubricators
Operating Principle
507 Series Oil Level Controllers automatically monitor and control the amount of oil in the lubricator housing. This keeps all of the working parts including the pump plungers submerged in oil to reduce wear and corrosion. When the level falls below the operational requirement, the low level safety switch will be activated.
Applications
- Lincoln, Premier, and Mega Lubricator Boxes
Features
- Valve design eliminates lubricator box overfill due to contaminates in the oil
- Controls oil level in lubricator
- Low level safety switch protects against engine and pump repairs due to lubrication failure
- Inlet pressures up to 60 psig (4.82 bar)
- Non-mercury switch will not react to vibration
Model K507-L
The standard valve seat material is Buna-N, but may be ordered as Fluorocarbon for other types of lubrication. A 1/2″ FNPT conduit connection is standard. The switch is case to ground, the circuit will remain open until the switch is activated.

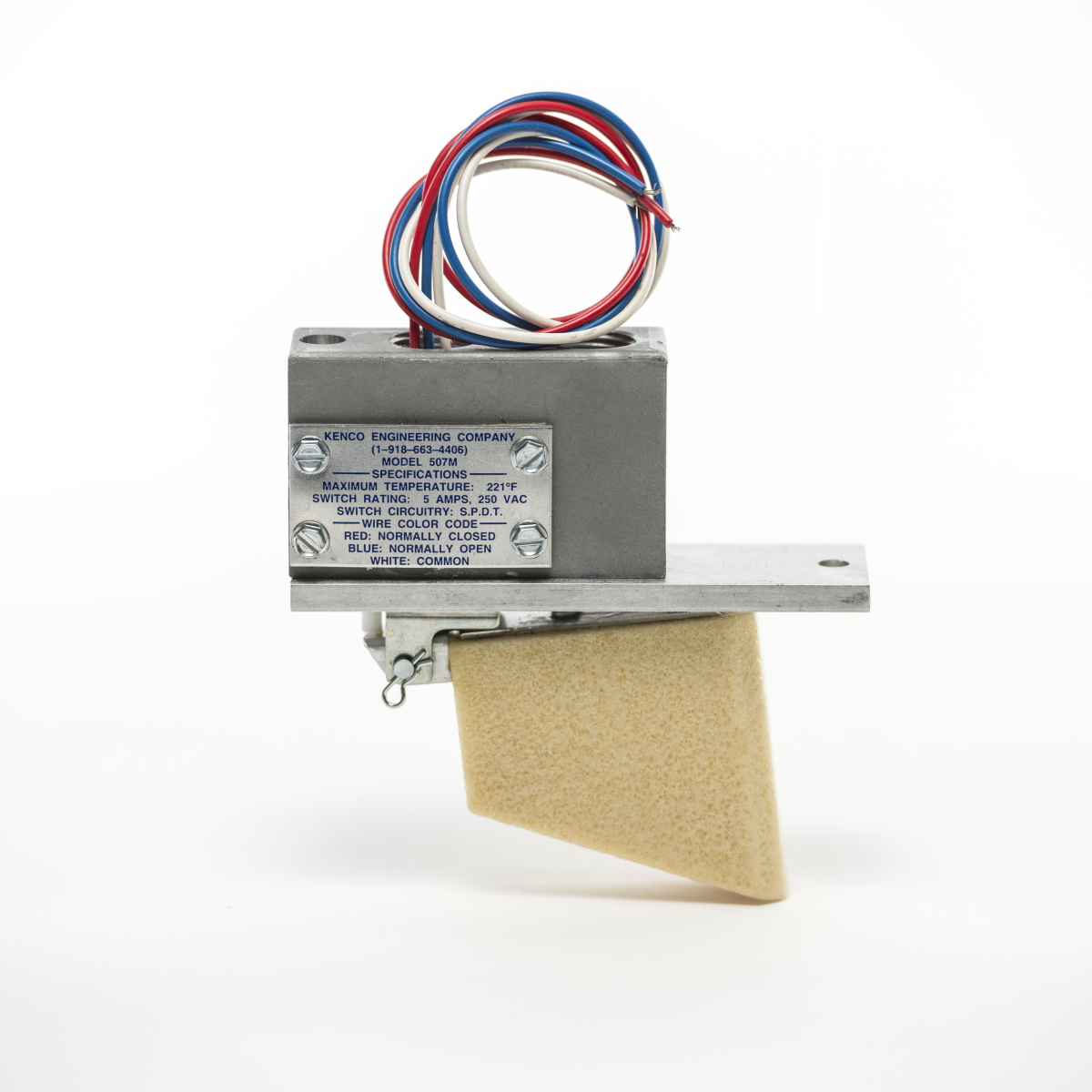

Model 507-M
The standard valve seat material is Buna-N, but may be ordered as Fluorocarbon for other types of lubrication. A 1/2″ FNPT conduit connection is standard. A basic two wire SPDT switch with form C contacts is standard.
Specifications
Model K507-L
Materials of Construction
- Controller Housing – Aluminum
- Valve Seat – Buna-N
- Optional Valve Seat Material – Fluorocarbon
- Valve Orifice – Aluminum
- Float – Closed Cell Polyurethane
- Oil Inlet Screen – 20 Mesh Stainless Steel Cloth
Oil Inlet Data
- Oil Inlet Connection– 1/2″ FNPT
K507-L
- Inlet Pressure– 2’to 14′ Head of Oil
- Flow Rate– Tested at 32°F, SAE 30; 2′ Head: 1.1413 Gallons per Hour
K507-L-HP (High Pressure Model):
- Inlet Pressure– 5 to 60 psig (0.34 to 4.13 bar)
- Flow Rate– 5 psig @ 32°F, SAE 30; 0.6425 Gallons per Hour
Electrical Switch Data
- Switch Trip Point– 3/4″ Drop
- Switch Rating– 2 amps, 30 VAC, or VDC
- Electrical Connection– 1/2″ FNPT Conduit Connection; 18 AWG X 36″ Long Wire Lead
- Maximum Temperature– 221°F (105°C)
- Circuitry– Case-to-Ground
Model 507-M
Materials of Construction
- Controller Housing– Aluminum
- Valve Seat– Buna-N
- Optional Valve Seat Material– Fluorocarbon
- Valve Orifice– Aluminum
- Float– Closed Cell Polyurethane
- Oil Inlet Screen– 20 Mesh Brass Cloth
Oil Inlet Data
- Oil Inlet Connection– 1/2″ FNPT
507-M:
- Inlet Pressure– 2′ to 14′ Head of Oil
- Flow Rate– Tested at 32°F, SAE 30; 2′ Head: 1.1413 Gallons per Hour
507-M-HP (High Pressure Model):
- Inlet Pressure– 5 psi to 60 psi (0.34 to 4.13 bar)
- Flow Rate– 5 psi @ 32°F, SAE 30; 0.6425 Gallons per Hour
Electrical Switch Data
- Switch Trip Point– 3/4″ Drop
- Switch Rating– 5 amps, 250 VAC or VDC
- Electrical Connection– 1/2″ FNPT Conduit Connection with 22 AWG x 18″ Long Wire Leads
- Circuitry– Single Pole Double Throw
- Maximum Temperature– 211°F
Wire Color Code
- Red– Normally Closed
- Blue– Normally Open
- White– Common
